Cleaning

TOPKLEAN EL 20B

Removal of flux residues
Co-solvent process
Evolution of Topklean EL 20A

TOPKLEAN EL 20B is a minor evolution of TOPKLEAN EL 20A and it is especially designed to clean solder flux residues after reflow. While removing almost any solder flux residues, it also leaves no white residues and provides a shiny effect on alloys & metals.

It is used in co-solvent process to offer a fast & sustainable cleaning process with very high cleaning efficiency. In this process, TOPKLEAN EL 20B is rinsed perfectly with solvents from our PROMOSOLV range.

The co-solvent process has been a game changer for over 15 years now and is qualified by several actors in the electronic & semicon industry. It has been developed to replace solvents with a high HSE impact with a more sustainable solution and with equally strong cleaning performance. It particularly stands out when addressing low stand-off components. In contrast, a water-based cleaning system carries the risk that the cleaning chemistry may not be adequately removed due to the significantly higher surface tension of water.

Show links

Hide links

Product Data Sheet

MSDS finder

Request a sample

Contact an expert

This is not a product

Although fully in line with safety & environmental regulations, this product doesn`t match our strict criteria to be labelled as a Greenway product.

LOOKING FOR A MORE SUSTAINABLE SOLUTION?

GREENWAY ALTERNATIVE

We currently don`t have a Greenway alternative but our target is to develop one in the near future. In case you want us to prioritize the development of a Greenway alternative, do not hesitate to contact us.

Discover more about Greenway

Benefits

Performance

Excellent solubility of organic & mineral residues
Very low surface tension to allow excellent cleaning under low stand-off components
Excellent compatibility with materials used on PCB’s
Allows shining effect to sensitive alloys & soldered surfaces

Cost

Fast process allows increase in production capacity
Rinsing fluid is constantly recycled, limiting consumption.
No water consumption & no need for wastewater treatment

HSE

Non-toxic & no CMR substances
No Ozon Depletion Potential (ODP)
No Global Warming Potential (GWP)
Relative high flash point – safe to use, storage & transport
No aromatics & halogenated compounds

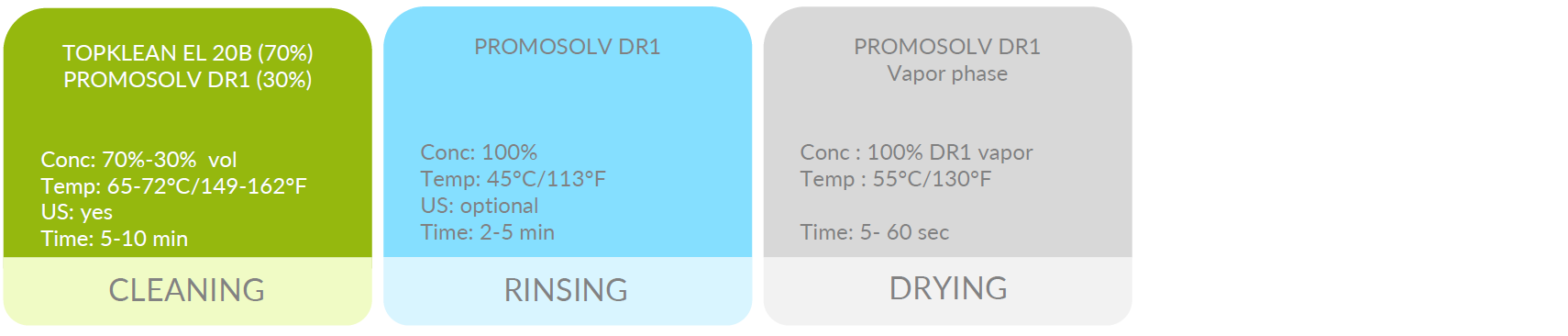

Process examples

The best process will depend on factors such as operating conditions, equipment, desired cleaning time and the nature of contaminants. Our team is ready to advise you.
